Vectronix Vector IV 7x42 SR1


Recommended Posts

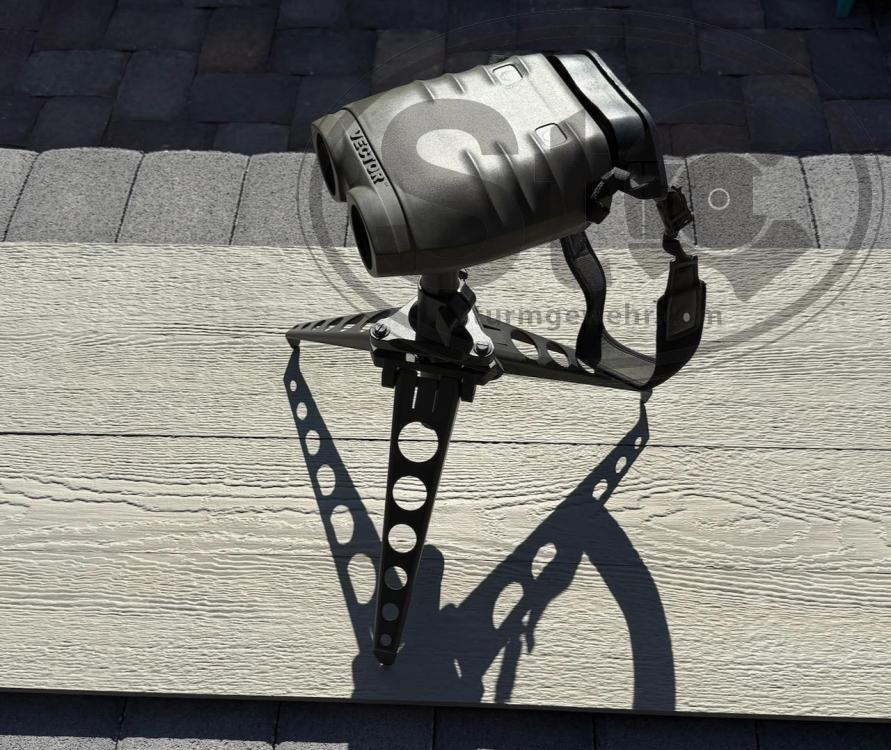

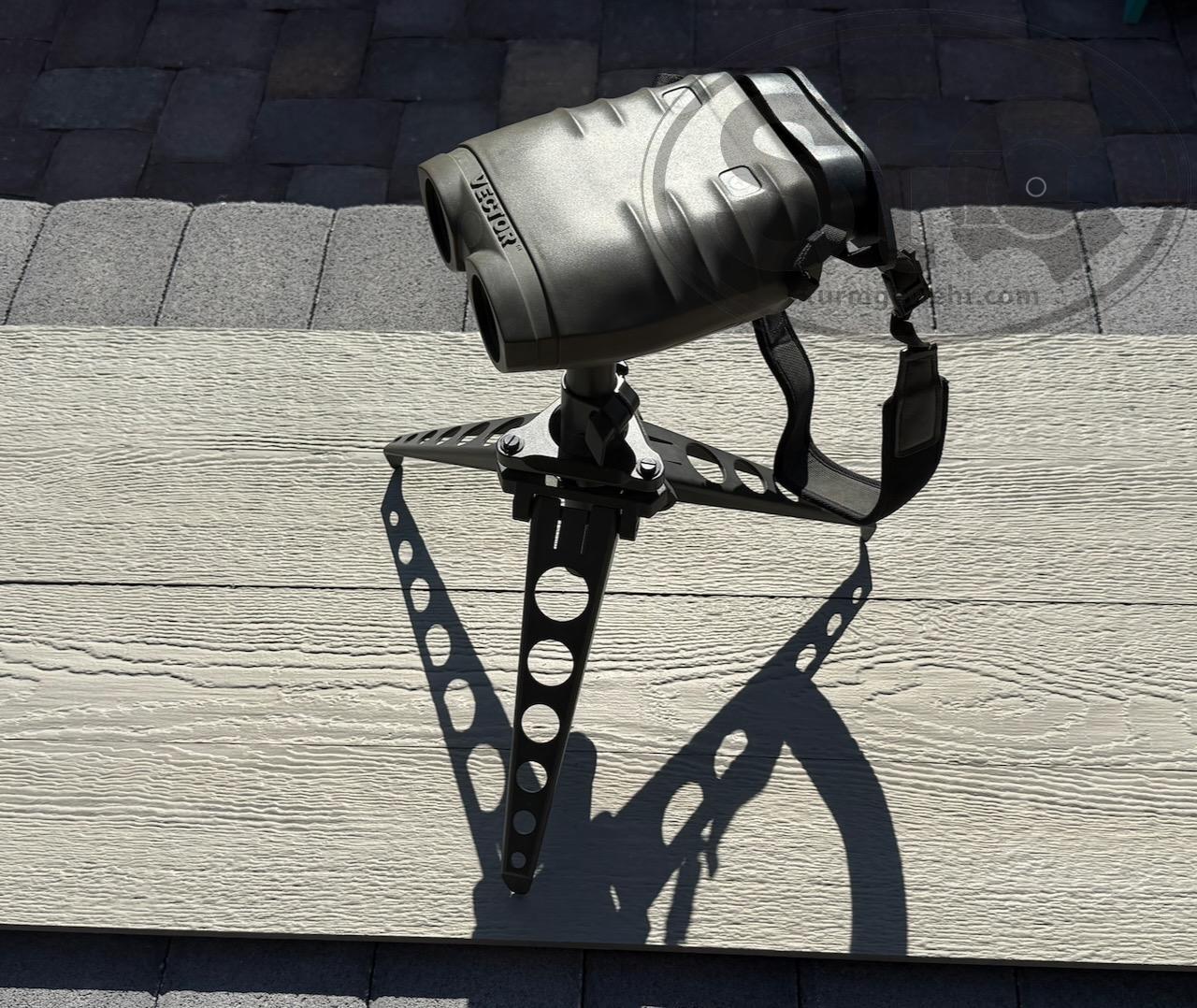

No introduction needed if you are into this stuff then you know these are the military issue version with the reticle and tripod

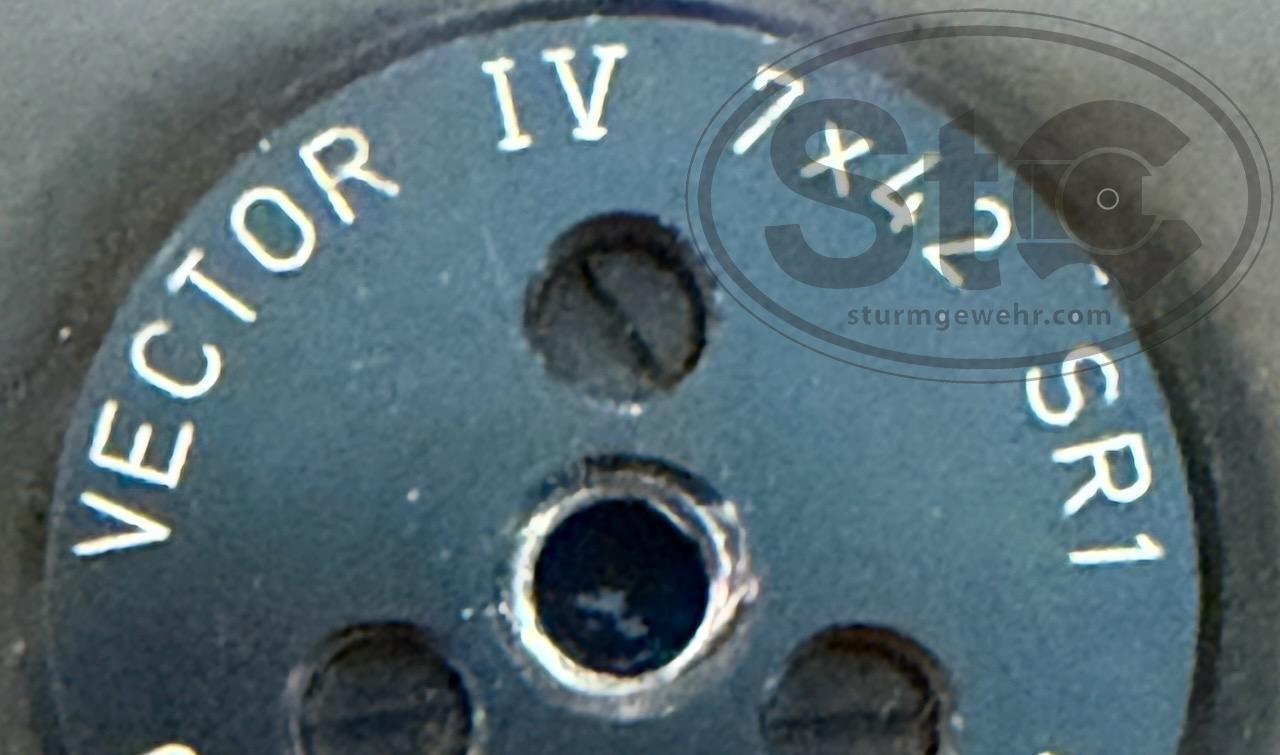

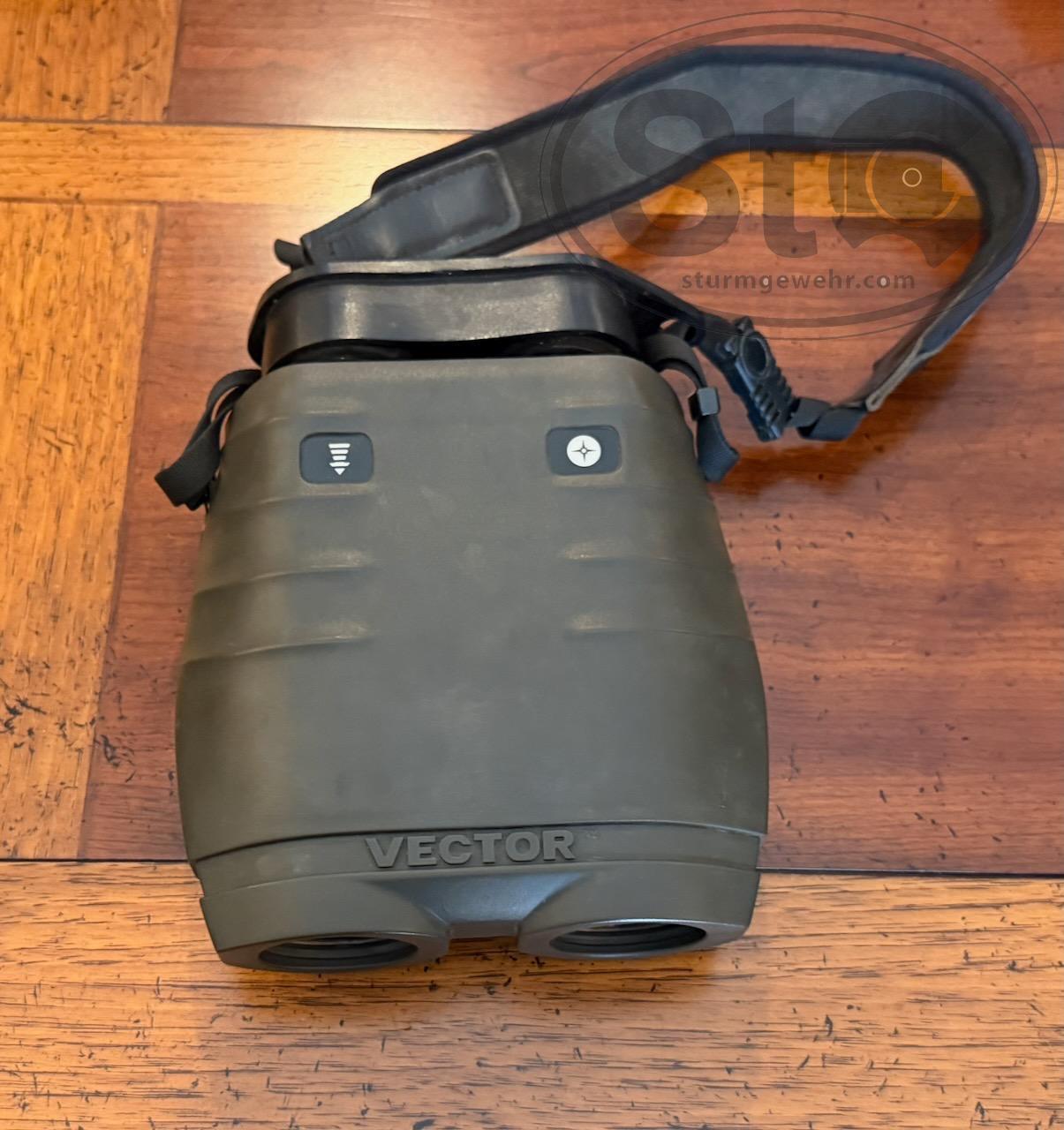

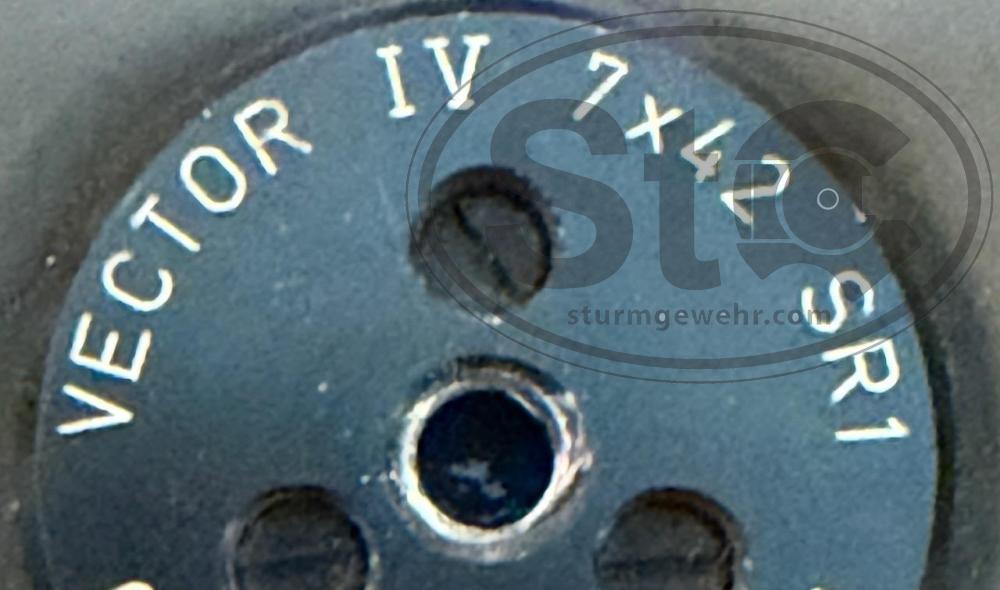

Vectronix Vector IV 7x42 SR1

Price is $4500 with insured delivery

Digital Payments Only

Cross Posted

Specifications

Angular Field of View 120 mil/6.75°
Exit Pupil 6mm
Eye Relief 18 mm
Range 5 m to 6,000 m (5 yards to 6,561 yards)
Battery Type 6V lithium battery type 2CR5
Capacity: > 5,000 measurements, low battery indicator
Beam Divergence 2 x 2 mil
Laser 1,550 nm, class 1 eyesafe per IEC 608251 Ed 1.2 (200108), ANSI Z 136.1 (2000)
Measurement Units Distance: meter, yard, feet
Angle: mil, degree, gon
Measuring Timem0.4 s to 0.9 s
Repetition Rate: 12 per minute
Angle Compensation
Inclination Accuracy (1σ): +/-3 mil / +/-0.2°
Maximum inclination angle: 45° in any direction (inclination and bank)
Objective Diameter 42mm
